KIOTI CK4010SE HST TRACTOR
40 Horsepower Class
Whether it’s New Years, Christmas, or any other day of the year, there’s always a good reason to celebrate at Kioti Tractor Store. We have so many special offers available that can help make it more convenient to get hold of one of our POWERFUL and RELIABLE vehicles. Stop by Kioti Tractor Store for a test drive today.
CK4010SE HST FEATURES
Engine Gross Power: 39.6 hp (29.5 kW)
PTO Type: Independent; Transmission Type: Hydrostatic; Shuttle: N/A; Diesel engine with Daedong ECO Technology; Dual Pedal HST; Power Steering; Single Lever Joystick
The new 34.9 hp (26 kW) ECO-friendly diesel engine provides powerful performance and improves fuel efficiency while reducing noise levels.
Responsive, powerful and comfortable steering reduces operator fatigue. The power steering system is robustly designed for maneuvering in soft soil and for front loader operation.
The illuminated dashboard ensures great visibility while working in bright daylight or at night. The operator can check important instrumentation at a glance with an easy-to-see tachometer, hour meter, fuel temperature gauge and battery charge lamp.
KIOTI Tractors are designed for easy maintenance. Liftable hoods and removable side panels allow convenient access for daily service checks. Maintaining your tractor for long life and high performance has never been easier.
SINGLE LEVER JOYSTICK
The operation of the front end loader is made easier by the use of a single lever joystick. The joystick allows you to perform all loader functions with a single lever. The lever automatically returns to neutral and the loader stops in place when the joystick is released. A float position allows the bucket free flotation over the ground surface.
A fully adjustable suspension seat allows the operator to ride in comfort no matter what the job. A seatbelt is standard on all KIOTI tractors to ensure operator safety.
HIGH GROUND CLEARANCE
The minimum ground clearance of 13.4 in. makes usage on rocky or uneven terrain simpler.
3 POINT CONTROL LEVER
The 3-point control lever allows you to easily raise and lower the lift arms when attaching implements.
Rear PTO is standard and mid PTO is optional.
KIOTI CK4010SE HST TRACTOR
Specifications, Attachments, and Implements
Transmission Type Hydrostatic
No. of Travel Speeds - Forward / Reverse 3 Range
Min. Travel Speed of Forward w/ Ag @ Engine rated speed 0 mph (0 km/h)
Max. Travel Speed of Forward w/ Ag @ Engine rated speed 15.4 mph (24.7 km/h)
Length w/ 3-point hitch 120.9 in. (3,070 mm)
Width 54.5 in. (1,385 mm)
Height from Top of ROPs 99.2 in. (2,520 mm)
Wheelbase 65.7 in. (1,670 mm)
Ground Clearance 13.4 in. (340 mm)
Front Tread Ag Tires - Min 48.2 in (1,225 mm)
Rear Tread Ag Tires - Min 47.6 in. (1,210 mm)
Min. Turning Radius w/ Brake 8.0 ft. (2.4 m)
3 POINT HITCH
Standard Category 1
Lift Capacity, 24" aft of hitch 1,631 lbs. (740 kg)
Control Type Position
POWER TAKE OFF
PTO Type Transmission Independent
PTO Power 33.5 hp (25 kW)
Rear PTO Speeds 540 rpm
Mid PTO Speeds 2,000 rpm (Optional)
Total Pump Flow 11.7 gpm (44.4 L/min)
Weight w/ Ag Tires w/ ROPs 2,921 lbs. (1,325 kg)
3. HUGE VARIETY
4. ALWAYS GREAT PRICE
5. 33 YEARS ON USA MARKET
6. THE MOST COMFORTABLE
ALL - KIOTI TRACTORS!
It’s almost a scientific fact that tractors make people happier and more relax. It’s better than meditation and yoga classes. And Bright. Orange. Color of the Tractor. Simply enhance those feelings.
TRY FOR YOURSELF. TODAY.
IMPLEMENTS & TIRES
Take Your Pick

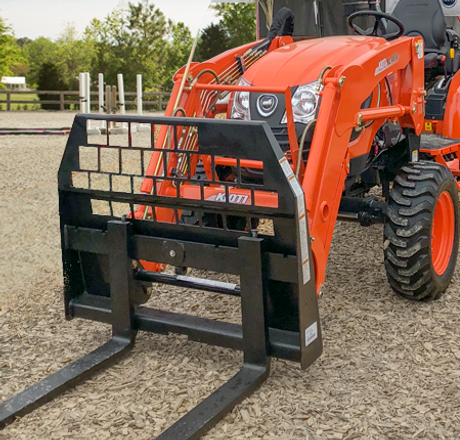

FRONT END LOADER KL 4030
Maximum Lift Height to Pivot Pin 98.4 in. (2,500 mm)
Maximum Lift Height Under Level Bucket 93 in. (2,360 mm)
Clearance With Bucket Dumped 45 Degrees 79.1 in. (2,010 mm)
Reach At Maximum Lift Height 27.2 in. (690 mm)
Maximum Dump Angle 48°
Reach With Bucket on Ground 62.2 in. (1,580 mm)
Maximum Rollback Angle 28°
Approximate Weight (With Bucket) 60 in.: 959 lbs. (435 kg) / 66 in.: 981 lbs. (445 kg)
TRACTOR BACKHOE KB 2475L
Digging Depth (two foot flat bottom) 89.7 in. (2,280 mm)
Reach from center line to swing pivot 125.1 in. (3,180 mm)
Loading Height (bucket at 60˚) 72.4 in. (1,840 mm)
Maximum Leveling Angle 10˚
Swing Arc 180˚
Shipping Weight - Backhoe 880 lbs. (399 kg)
Bucket Digging Force 2,817 lbs. (1,278 kg)
Mowing, cutting, tilling, haying, hauling. Whatever the job is, KIOTI has user-friendly, high performance implements to help you get it done.
